Running on QEMU inside Docker #

Although the firewall can be run on QEMU natively, to test it effectively it requires a more complicated networking backend than is typically required when using QEMU. The default QEMU network backend SLIRP implements a virtual NAT’d network with very little configurability. The better, more versatile option is to use a TAP network backend which supplies QEMU with a virtual NIC, and allows the host to configure the desired network topology. The problem with this is that configuring this network topology is very dependent on the operating system of the host, and in the case of macOS creating a TAP network interface is no longer supported, or at least not without the use of kernel extensions.

To standardise the TAP network backend for the firewall running on QEMU, we have created a ubuntu Docker container along with scripts to be run inside the container to initialise the networking and test the various firewall functionalities. The Dockerfile for the container can be found inside the LionsOS repository, in examples/firewall/docker. All the scripts referred on this page can be found within the scripts directory examples/firewall/docker/scripts. Most of these scripts rely on configuration variables set in firewall_configuration.sh, so be sure to set them before running the dependent commands.

Building and running the Docker container #

The following instructions describe how to build and run the Docker container. We still recommend building the firewall QEMU image on your host machine, and sharing the image with the Docker container. For instructions on building the firewall, see the section on building.

The following building and running commands can also be found in the script building_running.sh.

Setting parameters #

Before building the Docker image, ensure you set the required environment variables in firewall_configuration.sh. Most of these variables have a default value that can remain unchanged, but you will need to set the following:

# Path to LionsOS repo, used for sharing the image and scripts with the container
export LIONSOS_REPO=

# Host ssh public key, used by the container to authenticate incoming ssh connections
export HOST_SSH_PUB_KEY=

# Path to host identity, used for connecting to the container
export HOST_KEY_PATH=

We use an SSH connection to the container to allow the firewall’s configuration webserver to be accessible from your host’s browser. If you do not wish to use this functionality these values can be ignored. If you are happy to use your default SSH identity key to connect to the container, you can also ignore the HOST_KEY_PATH variable and remove the -i identity file specifier from your SSH commands.

Network configuration variables #

The IP address and subnet of each firewall interface can also be changed by modifying this file. However, the values set in this file are only used for creating the virtual network in the Docker container, and will not update the build-time values set in the firewall metaprogram which are used to create the firewall image. The default network configuration values are set to match the default IP addresses and subnets in the metaprogram, so if you wish to change them you will need to ensure you also change the corresponding metaprogram values and rebuild the image.

Building #

To build the Docker image, run the following command within the docker directory:

docker build -f Dockerfile . -t ${DOCKER_IMAGE}

This will create a ubuntu Docker image with all the necessary networking, SSH and QEMU packages.

Running #

To run the container, run the following following command:

docker run -it \
    --privileged --cap-add=NET_ADMIN --cap-add=NET_RAW \
    -v ${LIONSOS_REPO}:/mnt/lionsOS \
    -p ${HOST_SSH_PORT}:22 \
    --name ${DOCKER_CONTAINER} \
    ${DOCKER_IMAGE}

The options used in the command are:

• -it starts an interactive shell
• --privileged --cap-add=NET_ADMIN --cap-add=NET_RAW grants the container additional privelages required to configure the network
• -v ${LIONSOS_REPO}:/mnt/lionsOS mounts the host LionsOS repository to the container’s mnt directory, which we use to access the firewall image and relevant scripts
• -p ${HOST_SSH_PORT}:22 enables host to guest port forwarding, which we will use to SSH into the container. As mentioned in the setting parameters section, this is only required for accessing the firewall webserver from your host browser thus may be omitted if you do not wish to access the GUI in this way

If this is successful the container should now be running with an interactive shell. To confirm the file mounting was successful, you can run:

root@1c3cc4f86117:~# echo $DOCKER_CONTAINER
firewall_container

Internal container set up #

Some of the container setup needs to be run from within the container, namely setting up the virtual network and (optionally) starting the ssh daemon.

Virtual network creation #

To create the TAPs, bridges, veths and namespaces required, run the net_setup.sh script:

root@1c3cc4f86117:/# mnt/lionsOS/examples/firewall/docker/scripts/net_setup.sh
net.bridge.bridge-nf-call-iptables = 0

Note that the output from this script is the result of the command

sysctl -w net.bridge.bridge-nf-call-iptables=0

which disables the kernel sending bridge traffic to iptables. The net_setup.sh script also disables bridge filtering which can drop firewall traffic by default.

The net_setup.sh script creates the virtual network pictured in the following diagram (although the firewall itself is not running yet):

Enabling SSH #

To enable the SSH daemon and add your public key to the set of authorised keys, run the following script:

root@1c3cc4f86117:/# mnt/lionsOS/examples/firewall/docker/scripts/ssh_setup.sh
 * Starting OpenBSD Secure Shell server sshd                 [ OK ]
 * sshd is running

You should now be able to SSH into the container.

Connecting to the Docker container #

To open an interactive terminal into the container run:

docker exec -it ${DOCKER_CONTAINER} /bin/bash

To SSH into the container run:

ssh -o StrictHostKeyChecking=no \
    -o UserKnownHostsFile=/dev/null \
    -i ${HOST_KEY_PATH} \
    root@localhost -p ${HOST_SSH_PORT}

We disable adding the container to your known hosts as this may potentially cause conflicts if the container is rebuilt.

Running the firewall #

Before running the firewall, ensure the firewall metaprogram configuration matches your Docker network, and a firewall QEMU image has been created within your LionsOS repository. You can then run the qemu.sh script which instructs QEMU to run your firewall image with the TAP network backend we just configured:

root@1c3cc4f86117:/# mnt/lionsOS/examples/firewall/docker/scripts/qemu.sh

By default the script assumes that the firewall image is located at /mnt/lionsOS/examples/firewall/build/firewall.img, however an alternative location can be passed as the first argument. If this is successful, the firewall should immediately boot and behave in the same way as described in the section on booting, although it will not receive any traffic until you generate it. Instructions on this can be found in the testing section.

Accessing the firewall webserver from your browser #

Once the firewall is running, if you have configured your container to support SSH connections, you should now be able to access the firewall webserver page from your host machine’s web browser. To enable this, you must first open an SSH connection with port forwarding:

ssh -o StrictHostKeyChecking=no \
    -o UserKnownHostsFile=/dev/null \
    -L ${HOST_HTTP_PORT}:${FW_INT_IP}:80 \
    -i ${HOST_KEY_PATH} \
    root@localhost -p ${HOST_SSH_PORT}

This is the same command described above, with the addition of the port forwarding option which funnels traffic from your host machine to the container, which then forwards the traffic to the internal IP of the firewall and back. The flow of traffic is displayed in the diagram below:

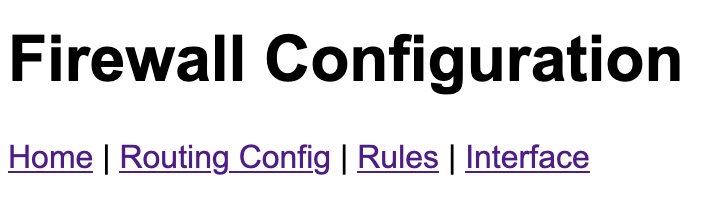

With this port forwarding SSH connection open you should now be able to see the firewall configuration home page in your host browser at localhost:{HOST_HTTP_PORT}.
